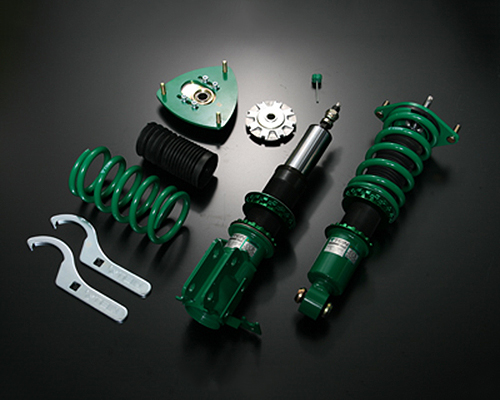

TEIN MONO SPORT Coilover Kit Toyota Mark X G’S 250G S Package G’S, 250G S Package G’S Carbon Roof Version GRX130 FR 2012.10-2013.11 JPN
SKU: GSL90-71SS3$3,883.00
The main concept of MONO SPORT is to provide driving pleasures to all drivers. All the different needs and demands are carefully analyzed to come up with the most suitable settings for each and every vehicle models. For cars often running on circuit, the settings are focused more on sport driving. MONO SPORT offers not only the precise steering feel that strongly appeals to sport-minded drivers, but also the flexible movement. MONO SPORT is set up to let the drivers enjoy the runs on circuits and/or winding roads and everyday driving on streets with the damping force adjusted. For cars requiring comfortable ride more than anything, touring settings are applied to provide and maintain the finest ride comfort which are often lost when the vehicle is lowered and/or larger tires/wheels are used. MONO SPORT offers the finest and most comfortable ride feel that makes even a long-distance driving seem like a breeze.
Front Specifications:
- Damping Force Adjustment: Y
- Full-Length Ride-Height Adjustable: Y
- Upper Mount: R/U
- Recommended Ride Height (mm): -25
- Recommended Ride Height (inch): -1
- Ride Height Adjustable Range:
- Max Low (mm): -99
- Max Low (inch): -3.9
- Max High (mm): 9
- Max High (inch): 0.4
- Recommended Low (mm): -35
- Recommended Low (inch): -1.4
- Recommended High (mm): -15
- Recommended High (inch): -0.6
- Spring
- Rate (kgf/mm): 10
- Rate (lbs/in): 560
- SP PART#SB100-01200
- Free Length (mm): 200
- I.D. (mm): ID70
Rear Specifications:
- Damping Force Adjustment: Y
- Full-Length Ride-Height Adjustable: Y
- Upper Mount: R/U
- Recommended Ride Height (mm): -10
- Recommended Ride Height (inch): -0.4
- Ride Height Adjustable Range:
- Max Low (mm): -93
- Max Low (inch): -3.7
- Max High (mm): 13
- Max High (inch): 0.5
- Recommended Low (mm): -20
- Recommended Low (inch): -0.8
- Recommended High (mm): 0
- Recommended High (inch): 0
- Spring:
- Rate (kgf/mm): 9
- Rate (lbs/in): 504
- SP PART#SV090-01225
- Free Length (mm): 225
- I.D. (mm): ID65
Fitment:
- Year: 2012.10-2013.11
- Make: Toyota
- Model: Mark X G’S
- Trim: 250G S Package G’S, 250G S Package G’S Carbon Roof Version
- Drivetrain: FR
- Chassis: GRX130
- Motor Size: 2500
- Vehicle Region: JPN
Notes:
- Not Tested On Post-Facelift Model (Nov 2016 Or Later). Due To Individual Differences, Inner Fender May Need To Be Cut If It Interferes With The Spring.
TEIN MONO SPORT Features:
Tein manufactures high performance suspension products for many different Japanese and European vehicles. Based in Japan, Tein USA has established itself with an incredible R&D facility and staff to help handle the tuner market. Tein has developed several different types of coilovers through their racing experience. This includes drift, road, rally, and street driving. Tein’s popular coilovers include the Type Flex, SS, and CS coilovers. Tein also manufactures lowering springs for those wanting a better look and handling with the stock struts. Their STech springs are used by many street drivers with great success. Spring rates, valving, ride height, and ride height adjustability were all chosen for local (US & Canada) road conditions and consumer demands.
Photo is for illustration purposes only – actual product may vary
